How to Wire a Three-Way Switch

Posted by Steve Graham | Jan 01, 2011
Get free quotes »

three way switch

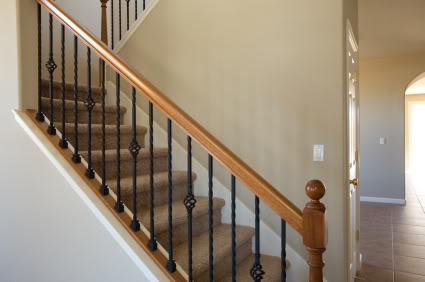

To control any fixture from two switches, such as a stairwell light with a switch on each floor, you will need to know how to wire a three-way switch. If you understand and can install basic electrical wiring, you will understand how to wire a three-way switch, as it only involves one extra wire and one extra terminal.

Specialized Equipment

Three-way cables include a secondary red conductor wire that runs between the switches, but not through the rest of the circuit. The switches have an extra screw terminal for the extra red wire (making for a pair of "traveler" terminals), as well as the grounding screw terminal.

Connecting to Each Switch

Pull both the hot power cable and the new three-way cable into your switch box. Use the lone standard terminal on one side of the switch for the hot power line. Twist the white wires from the power line and the three-way cable into a wire connector. Then connect the remaining red and black wires to each of the traveler terminals. The main difference in understanding how to wire a three-way switch is knowing there are no designated on and off positions, and no designated terminal for the red or black wires from the three-way cable. Just make sure the red wire is connected to the same terminal in each switch. Use the standard method for wiring the fixture, but twist together the two red wires in a wire connector without connecting them to the fixture.

Three Wiring Methods

There are three main approaches for how to wire a three-way switch:

  • Run the hot power line directly to the fixture using the two-wire cable, then run three-way cables to each switch. This may be simpler to set up in some cases, but some say this is not how to wire a three-way switch correctly. It will be difficult to troubleshoot later.
  • Run the hot two-wire cable into one switch, and run the three-way cable through the fixture to the other switch.
  • Run the hot power line into one of the switches, and run a three-way cable to the other switch and a regular two-way wire to the fixture. This may involve too much extra wire with some configurations, but this is how to wire a three-way switch in the simplest way. It only requires one three-way wire, and it may be the easiest configuration to troubleshoot.

In short, this is a quick summary of how to wire a three-way switch. As always, electric work can be dangerous and should be approached with caution. For the best results, hire a professional electrician.
