Types of Screws & Their Proper Usage

Using the right screw can help you avoid trouble like loose screws, or stripping or snapping screw heads.

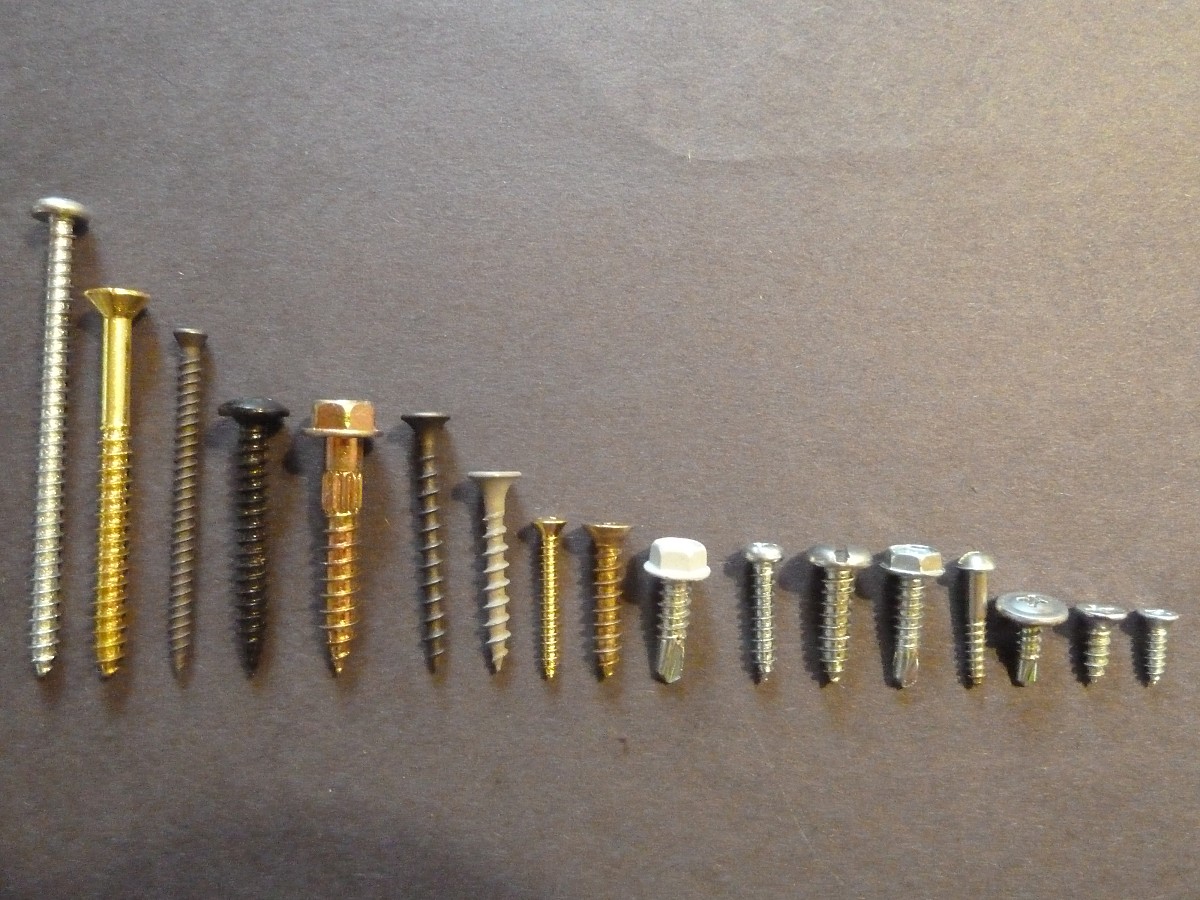

Can you identify these types of screws? (Photo: Laura Foster-Bobroff)You wouldn’t hang a small picture frame with a house nail or build a piece of furniture with an upholstery tack, but when it comes to screws most people will grab whatever they’ve got on hand to perform repairs or finish projects. Using the right screw can help you avoid trouble like loose screws, or stripping or snapping screw heads.

First lesson: Not everything with a thread is a screw. If it’s got a nut, with a flat bottom at the end of the shank, it’s not a screw – it’s a bolt!

In addition to the simple difference between a bolt and a screw, let’s have a short lesson in basic types of screws and their applications:

Wood Screws: Commonly made of brass, steel or bronze, wood screws are designed specifically for…wood! They’re easy to identify since most wood screws have shanks unthreaded at the top, with coarse threads at the pointed end. Their design allows the screw to move smoothly through wood fibers with less resistance, reducing splintering. Heads are angled - flat, round or oval. Oval-headed screws, also called “pan heads”, can be seen on the surface, but are not as highly visible as round-headed screws. Rounded-headed screws are used are in decorative applications, such as in furniture design. Flat heads are used when it’s important to have fasteners hidden or flush to the surface of the wood.

Tip: Pre-drilling holes in the wood, especially for longer screws going into hardwood, will reduce the risk of snapping the head because of too much torque. Also, make sure you use the right length of screw. Generally, you’ll want 1 – 1 ½ times the length of the screw to go into the adjoining board.

Drywall Screws: There are two basic types of  drywall screws – finely threaded (S-type), for attaching drywall to metal studs, or coarsely threaded (W-type) for attaching drywall to wood. S-types have self-drilling tips that eliminate the need to pre-drill. With very sharp points, drywall screws go in fast and reduce tearing. There are several brands, including those coated with ceramic, zinc or phosphate. Some coatings reduce corrosion. Charlotte house painters Paint Line make a good case for using proper drywall screws, saying, "That small hole that seems easy to patch can quickly turn into a large, unsightly bulge on your wall."

Sheet Metal Screws: Sheet metal screws come in a large assortment of types and sizes and can be used in any application that requires joining a number of different materials together including plastics, rubber and various metals as well as plywood. They should not be used to replace wood screws but are definitely outstanding fasteners because their sharp and customized threads, guaranteeing a tight bond.   Choice should be based upon the type of materials you are working with. Type A, B, or AB is the most common, while others such as Type 25 (for plastics) are used for specialized applications. Ask a hardware specialist for assistance choosing the right type of fastener for your project.

Sheet metal screws may have flat, oval or hex washer heads. The latter is attached to the head to distribute force over a wider area so the screw doesn’t “sink” into the material.

Self-Tapping: Self-tapping screws can be found as sheet metal, drywall or wood screws with different types of heads and have the distinctive advantage of eliminating the need to pre-drill. Threads of self-tapping screws accommodate the material by drilling their own holes as they’re inserted. The disadvantages to using them is that disassembly often results in stripping the screw (remedied by using a slightly larger screw for re-assembly), and they are easily snapped when over-tightened.
